Frozen French Fries Production Line

  • Name: Frozen French Fries Production Line
  • Raw material: potato/cassava/taro/sweet potato
  • Capacity: 100-5000 kg/h
  • Voltage: 380v/400v/420v/440v
  • Power: according to capacity
  • Material: 304/316 stainless steel
  • Energy: electricity, diesel, steam gas
  • Dimension(L*W*H): customization
  • Warranty: 1 year
  • Email: info@hadofmachinery.com
  • Mob & Whats app: +86 15239453015
  • Tel: +86 371-86582811

Production Process

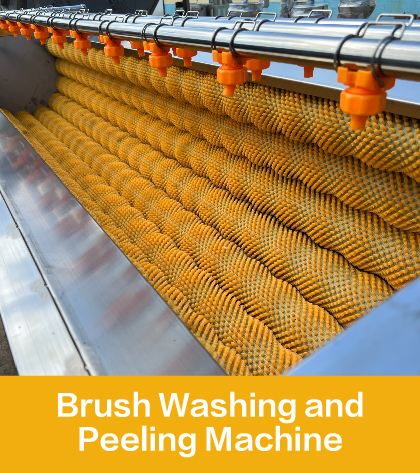

1.Raw Potato Washing and Peeling: With the help of roller cleaning stone removal machine and brush peeling machine, this stage can remove dirt, impurities, and the outer skin of the potatoes.

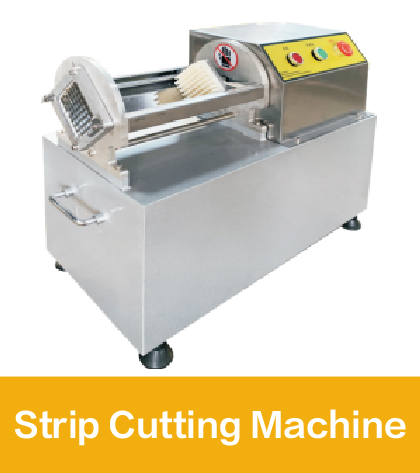

2.Potato Cutting: The peeled potatoes are cut into French fries by the cutting machine. And the thickness of French fries are adjustable.

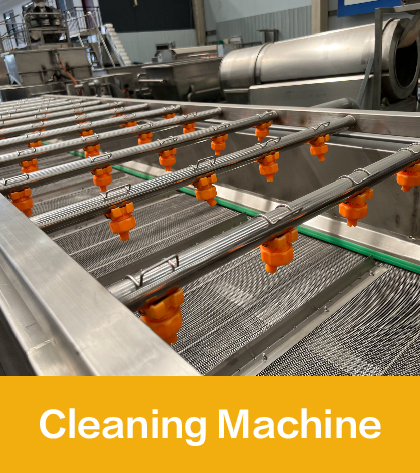

3.Cleaning: The cleaning time is 30-40S. During the cleaning process, the starch and sugar on the surface of French fries can be removed to prevent the deterioration of the oil body and prolong the service life of the oil.

4.Blanching: Blanching is a necessary procedure. Put the French fries into the blanching machine with a water temperature of about 65-90℃, which can destroy the enzyme activity, improve and soften the tissue structure, make it easy to dry and also prevent frying and foaming.

5.Drying: Drying the moisture on the surface of the French fries can effectively reduce the oil content of the French fries during frying, improve the taste of the French fries, and reduce the energy consumption of frying.

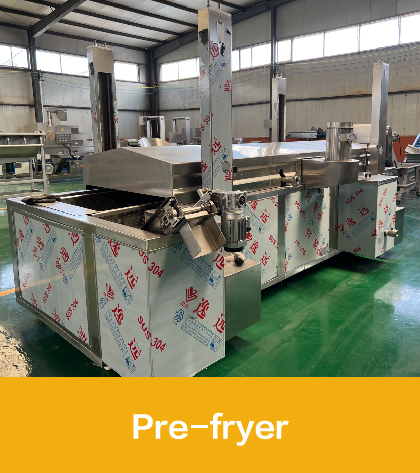

6.Frying: The frying time is 2-3 minutes and the frying temperature is 170-180℃. The dried French fries are deep-fried in oil at controlled temperatures until they become crispy and golden brown.

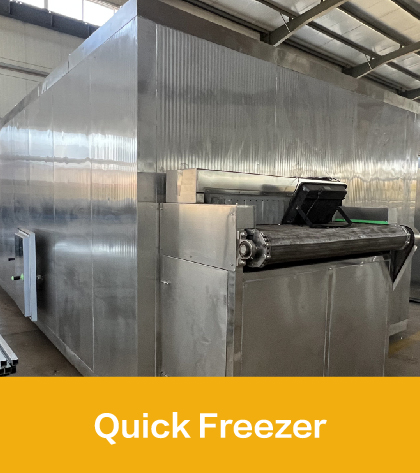

7.Freezing: After frying, the French fries are sent to the freezing machine. This can extend shelf life of French fries.

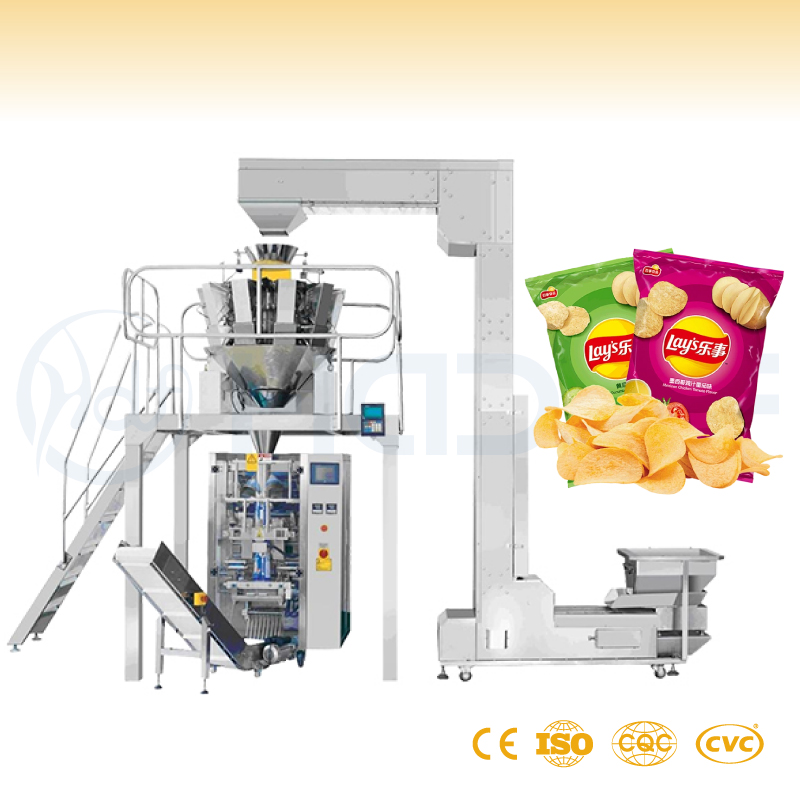

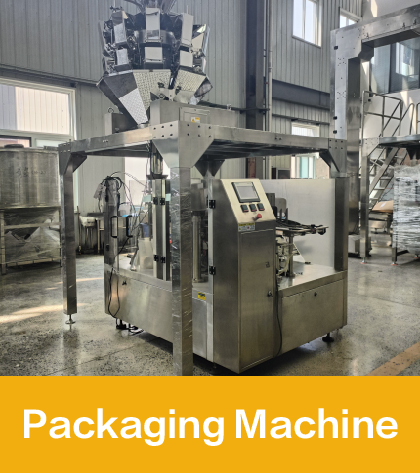

8.Packaging: The final step is to package the French fries into bags, pouches, or containers. 420 type automatic packaging machinery ensures proper sealing and protection of the product to maintain freshness and extend shelf life.

Main Equipment

Parameter Table

Product Name Model Dimension(mm) Power Capacity Material

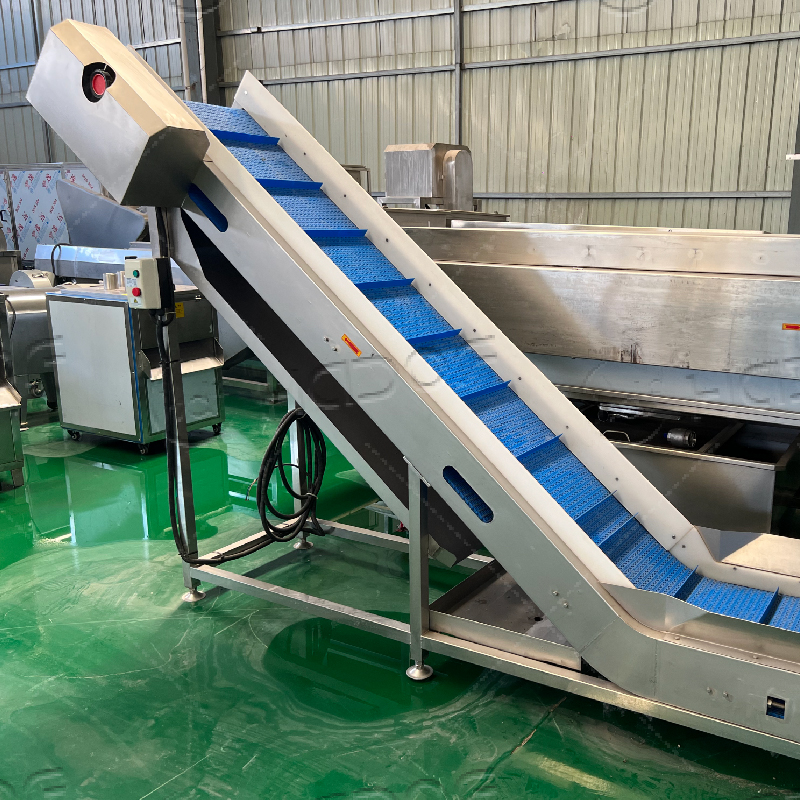

Hoister HADOF-2000 2000*700*1400 0.55 KW 1000 KG/H SUS 304
Brush Washing Machine HADOF-800 1050*830*900 1.5 KW 700 KG/H SUS 304
Blanching Machine HADOF-3000 2500*1100*1300 36 KW 300 KG/H SUS 304
Dewatering Machine HADOF-TY800 13701260*1650 1.65 KW 400-600 KG/H SUS 304
Continuous Frying Machine HADOF-4000 4000*1200*2400 100 KW 600 KG/H SUS 304
Deoil Machine HADOF-TY800 1370*1260*1650 1.65 KW 400-600 KG/H SUS 304
Freezing Machine HADOF-500 10000*2000*2500 0.8 KW 500 KG/H SUS 304
Flavour Machine HADOF-500 1100*1000*1300 1.5 KW 500 KG/H SUS 304
          (Reference Only)



Product Features

1. Frozen french fires production line has the advantages of high efficiency, energy saving, stable operation, reasonable design, easy operation.

2. Support Customization.

3. With special designed fryer, quick heating and energy saving, enabled good performance.

4. According to your workshop area, we can provide a better solution to improve your production line.

5. It can process all kinds of fruit and vegetables, especially root vegetables.
