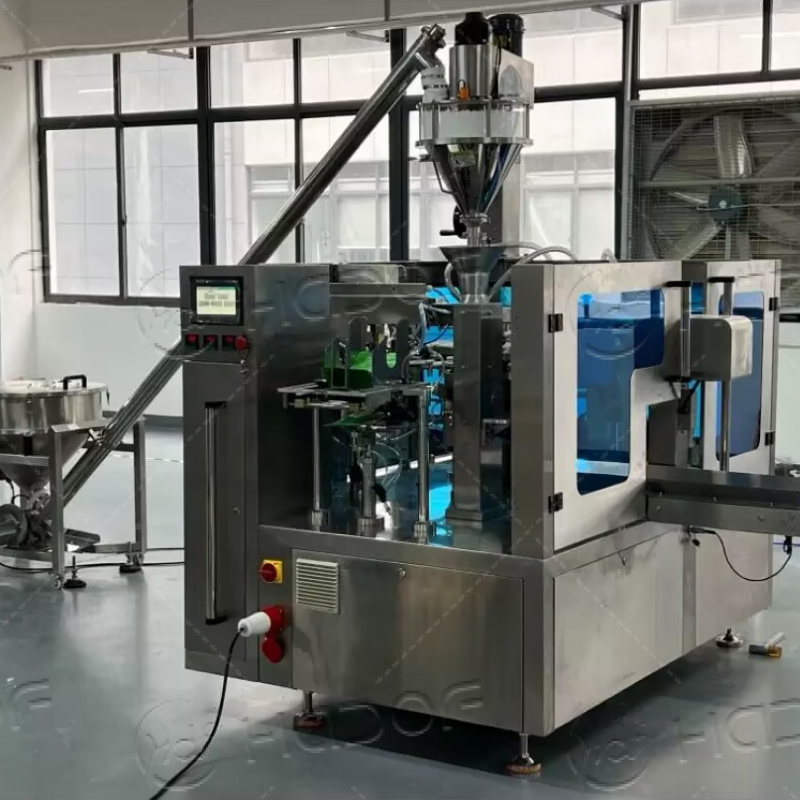

Fully Automatic Powder Bag Packaging Unit
1
1
1
1

Fully Automatic Powder Bag Packaging Unit

  • Voltage: 380V
  • Power: 2.5KW
  • Pre-made Bag Size: Width: 90-230mm / Length: 90-350mm
  • Packaging Speed: 15-50 bags/min
  • Filling Range: 10g-1000g
  • Air Consumption: ≤0.8m³/min
  • Functions: Filling, Labeling, Sealing
  • Applications: Food, beverage, commodities, medical, chemical, machinery and tools, tobacco, doypack packaging machines
  • Email: info@hadofmachinery.com
  • WhatsApp: +8615239453015
  • Tel: +86 371-8658281
Inquiry WhatsApp

Production Process

Main Equipment

Parameter Table

Model HDF-GD8-230 HDF-GD8-260
Pre-Made Bag Size A:90-230 mm L:90-350 mm A:140-260 mm L:100-350 mm
Packaging Speed 25-50 bags/min 15-50 bags/min
Filling Range 10 g – 1000 g 10 g – 2000 g
Air consumption ≤0.8 m³/min
Voltage / Power 380 V / 2500 W
8-Station Work Process 1. Bag feeding / 2. Coding / 3. Bag top opening / 4. Material filling / 5. Reservation / 6. Reservation / 7. Heat sealing / 8. Forming and output
Optional Equipment Horizontal bag loading, zipper opening, bottom bag opening, vibration, dust removal, zipper closing, nitrogen filling, etc.

Product Features

Made of SUS304 food-grade stainless steel, it meets sanitary standards, is corrosion-resistant, easy to clean, and robust.

Hadof offers a comprehensive service guarantee, from installation and commissioning to after-sales maintenance, with expert engineers available to answer questions.

Equipped with an intuitive control panel, it provides easy and intelligent operation, supporting parameter customization.
