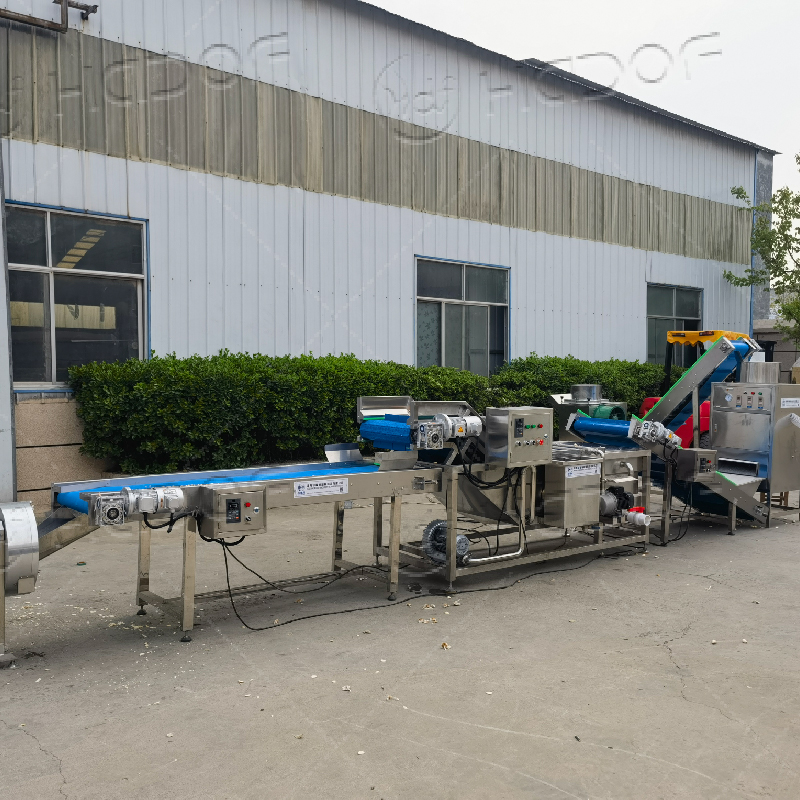

Garlic Processing Production Line

Name: Garlic Processing Line
Raw material: garlic
Capacity: 20 to 2000kg per hour
Voltage: 220V/380V
Power: customisable
Material: SUS304 stainless steel
Energy: Electricity, diesel, steam gas
Size (L×W×H): customisable
Email: info@hadofmachinery.com
Mob & Whats app: +86 15239453015
Tel: +86 371-86582811

Inquiry Contact us

Production Process

Garlic Sauce Production Process:

Splitting

Peeling

Cleaning

Crushing

Seasoning

Filling

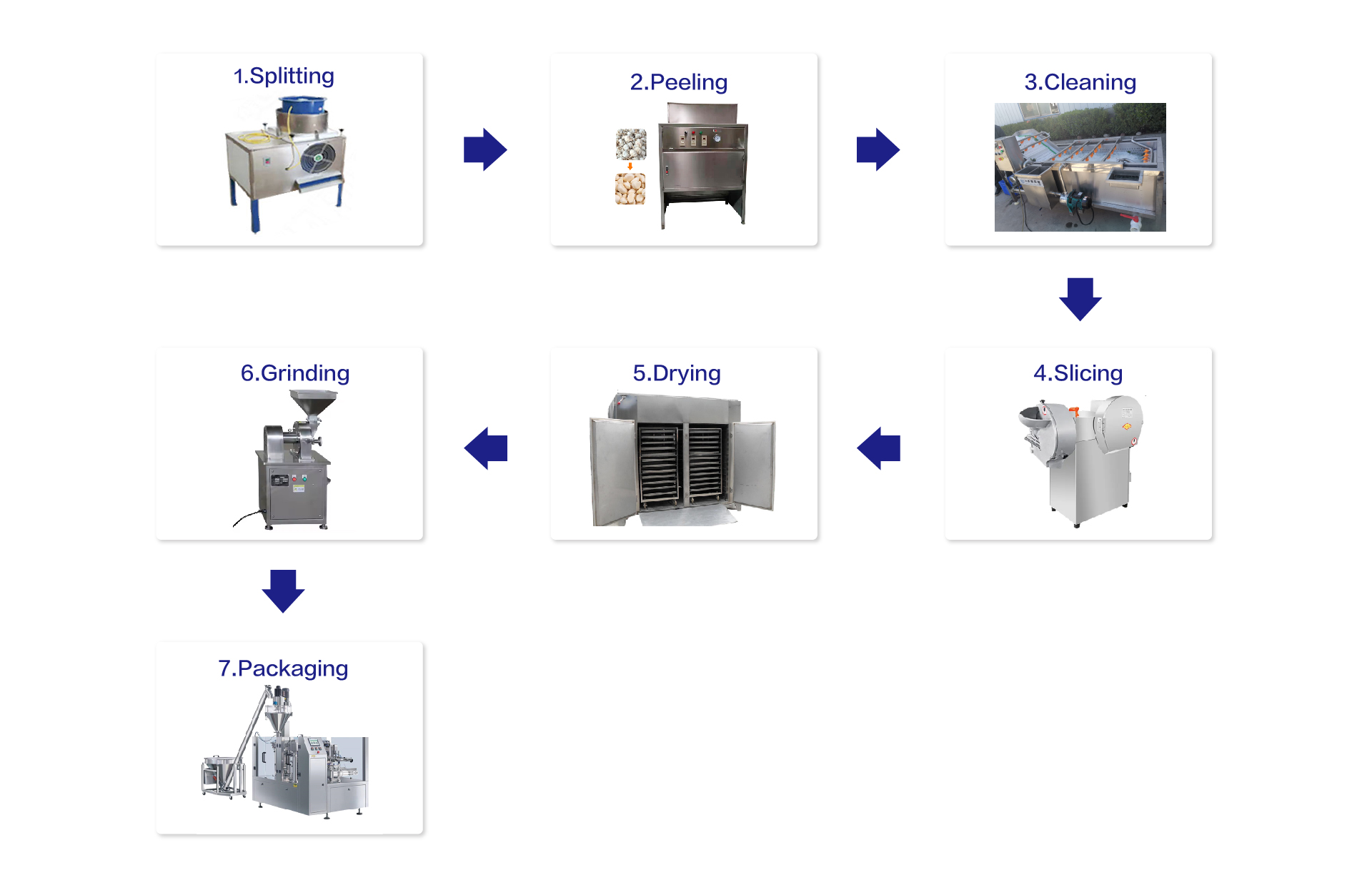

Garlic Powder Production Process:

Splitting

Peeling

Cleaning

Slicing

Drying

Grinding

Packaging

Main Equipment

Parameter Table

Product Name	Dimension（mm）	Power（KW）	Material

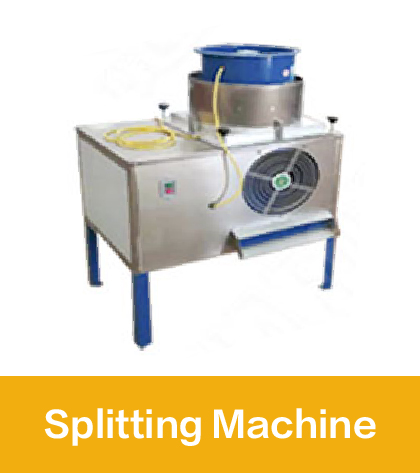

splitting machine	12008001500	3	SUS304

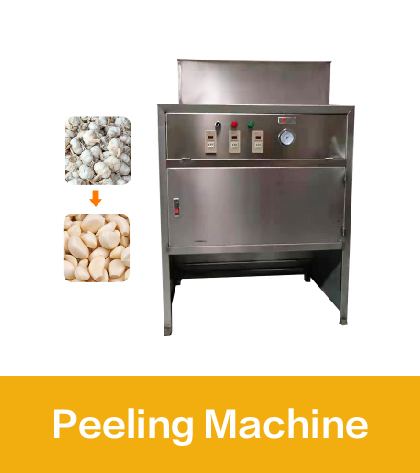

peeling machine	4500x1000x1800	4.5	SUS304

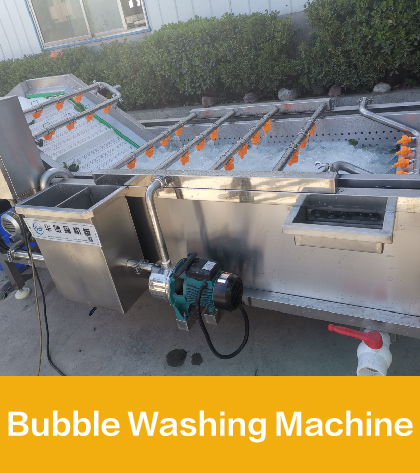

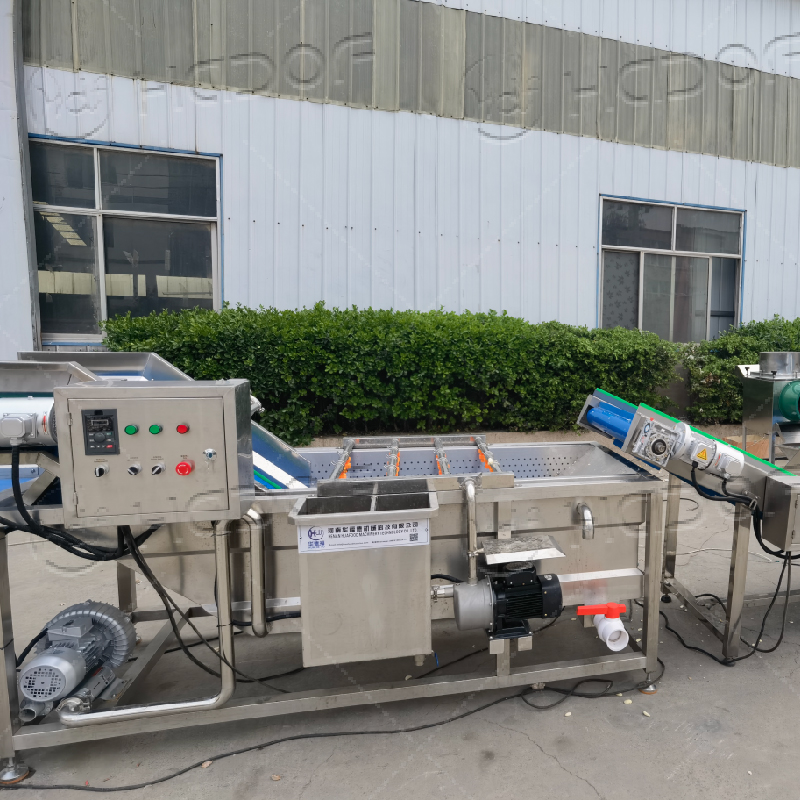

bubble washing machine	250012001300	2.25	SUS304

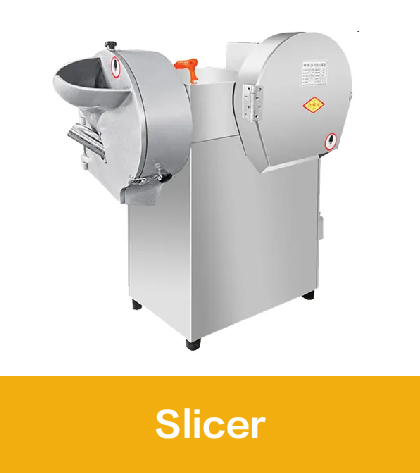

slicer	820570920	1.8	SUS304

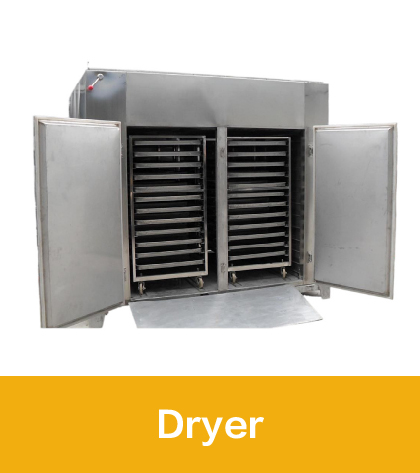

dryer	330020002200	10.75	SUS304

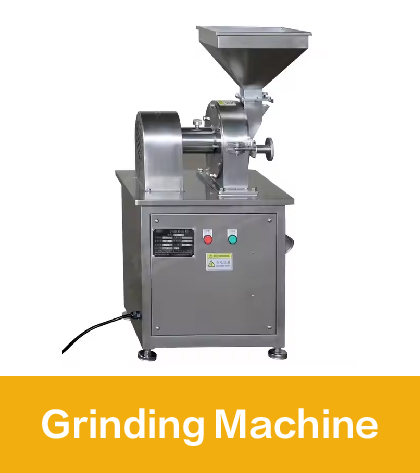

grinding machine	10008001500	5.5	SUS304
seasoning machine	30008502100	1.47	SUS304

Product Features

The whole production line is made of stainless steel, corrosion-resistant, long life, long-term use does not affect the smell and colour of garlic sauce, to protect the quality.
This production line not only can produce garlic sauce, but also can be used for tomato sauce and chili sauce production after replacing some machines.
Drying garlic slices with heat preservation device dryer, temperature and humidity can be controlled, dry garlic slices crisp and easy to crush, easy to grind powder.
The production line can work continuously, reduce time and labour cost, and improve processing efficiency and profit.
