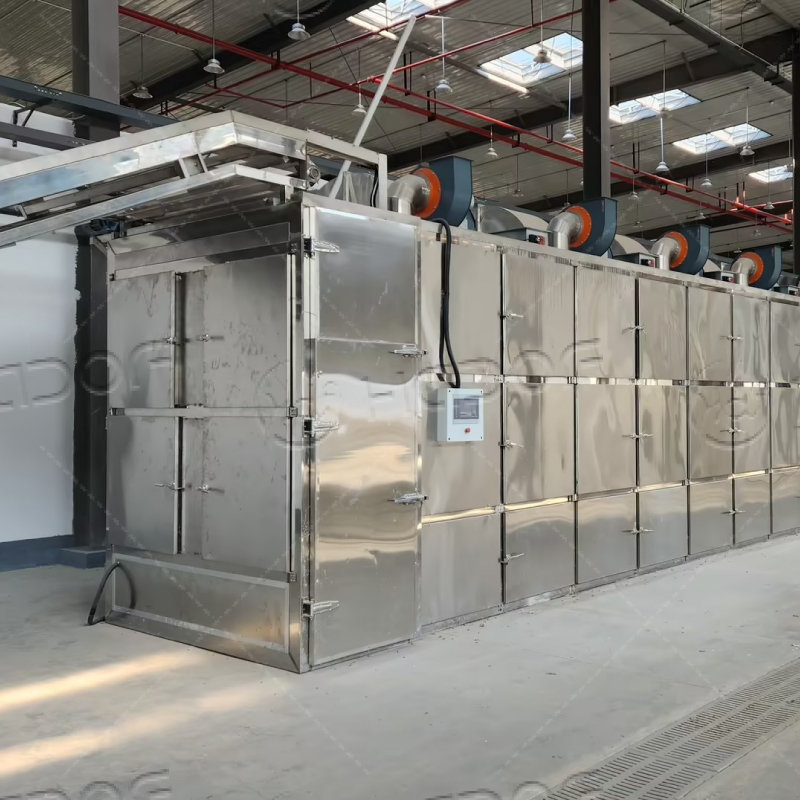

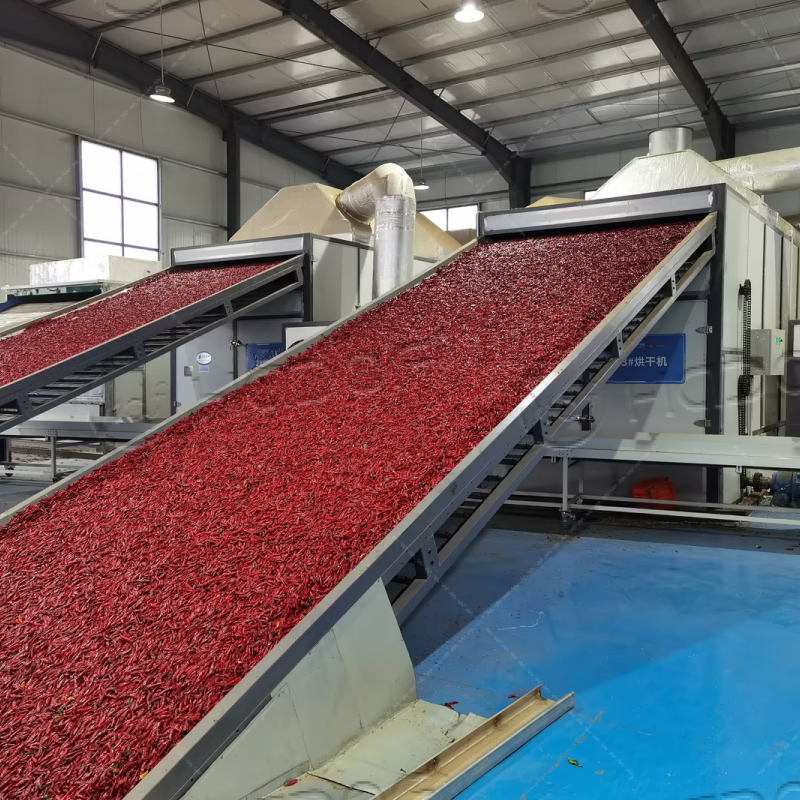

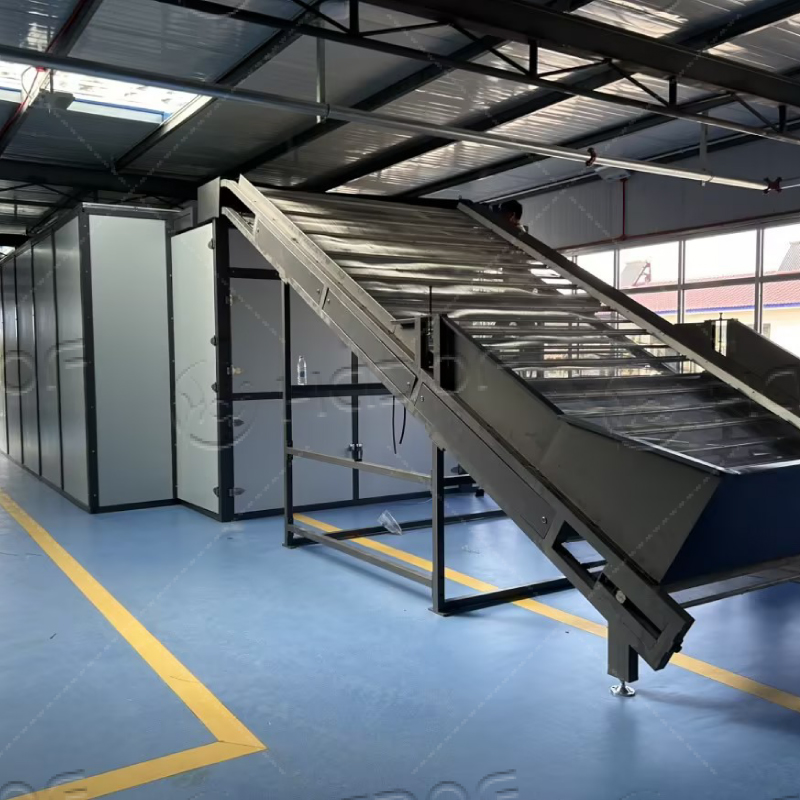

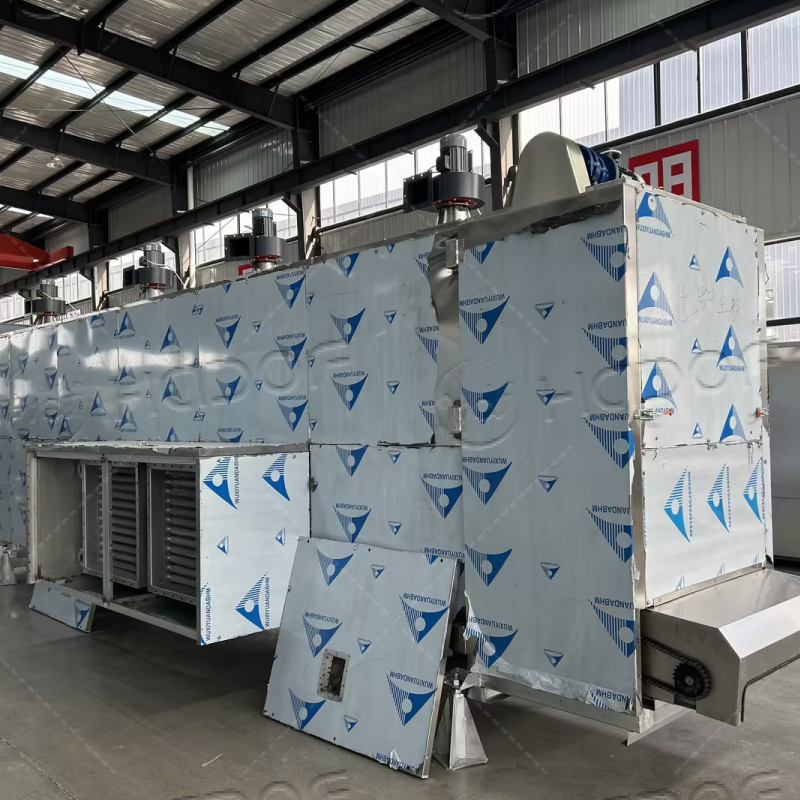

Multi-Layer Mesh Belt Dryer

  • Model: HDF-1.2-8
  • Mesh Belt Width: 1.2 m
  • Drying Length: 8 m
  • Material Thickness: 10-50 mm
  • Temperature: 50-120 ℃
  • Vapor Pressure: 0.2-0.5MPa
  • Water Evaporation: 80-220 kg/h
  • Total Power: 21.2 KW
  • Dimensions (L*W*H): Customizable
  • Total Weight: 3000 kg
  • Email: info@hadofmachinery.com
  • WhatsApp: +8615239453015
  • Tel: +86 371-8658281
Inquiry WhatsApp

Production Process

Main Equipment

Parameter Table

Model YTWD-1.2-8 YTWD-1.2-10 YTWD-1.6-8 YTWD-1.6-10 YTWD-2-8 YTWD-2-10
Width of The Mesh Tape (m) 1.2 1.2 1.6 1.6 2 2
Drying Length (m) 8 10 8 10 8 10
Material thickness (mm) 10-50
Temperature 50-120°C
Steam Consumption (Kg/h) ≤ 2 kg of steam/evaporation of 1 kg of water
Water Evaporation (kg/h) 80-220 100-320 90-300 120-380 130-400 180-500
Total Power (kw) 21.2 21.2 21.2 22.7 22.7 22.7
Total Weight (kg) 3000 4000 4400 4550 4300 6000

Product Features

High drying efficiency, utilizing an advanced hot air circulation system, ensures that materials achieve the drying effect in a shorter time.

Equipped with an intelligent control system, it precisely adjusts parameters such as temperature and humidity, achieving precise control and improving drying efficiency.

The mesh belt dryer can be applied to the drying of various materials, such as granules, powders, and sheet materials in the food, chemical, medical, and agricultural product industries.

The Waldorf manufacturer offers professional technical support and after-sales service, ensuring customers’ peace of mind and safety.
